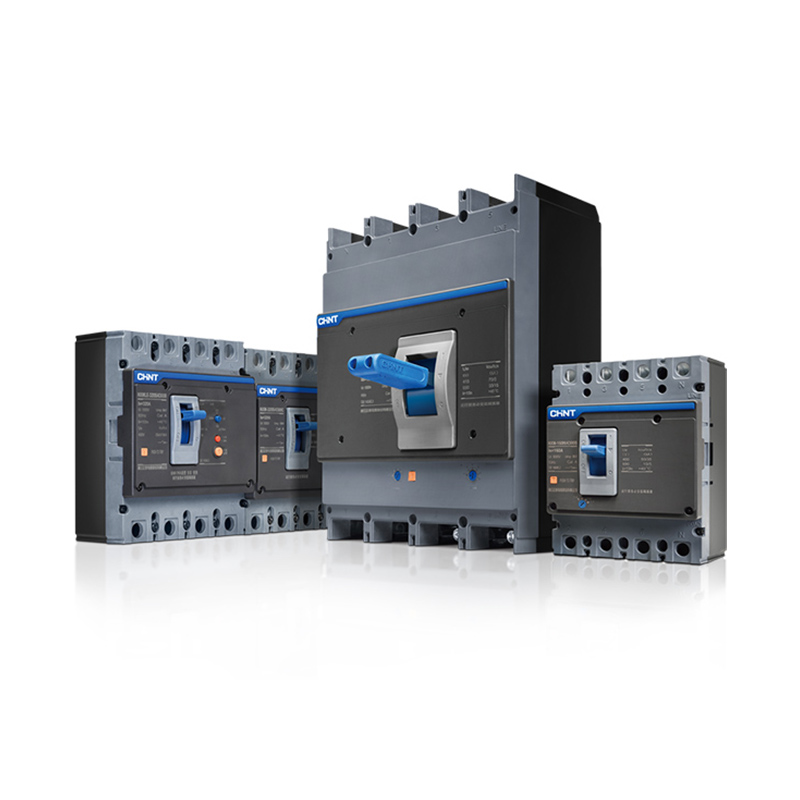

CHINTMoulded Case Circuit Breakers

NXM series

  • PRODUCT INFO
  • VIDEO CLIP

  • The moulded case circuit breaker will provide protection for the circuit and equipment in case of overload, short circuit and under voltage condition occurred in the power distribution circuit. Besides, it can also provide protection of overload, short circuit and under voltage for the non-frequent start of motor

DOWNLOAD CATALOG
Description
  • Frame size: NXM series moulded case circuit breaker: 63A, 125A, 160A, 250A, 400A, 630A, 800A, 1000A, 1250A, 1600A / NXMS series electronic breaker: 160A, 250A, 400A, 630A, 1000A, 1250A, 1600A
  • Rated operational voltage: Ue (VAC): 220/230/240, 380/400/415, 690
  • Breaking capacity code: E, S, F, H
  • Number of poles: 2P, 3P, 4P
  • Release type: thermal magnetic fixed type; magnetic fixed type; electronic type.
  • Installation method: Fixed type; plug-in type
Technical specifications & models
