CIRPROTECSurge Protection Devices (According to UL 1449)

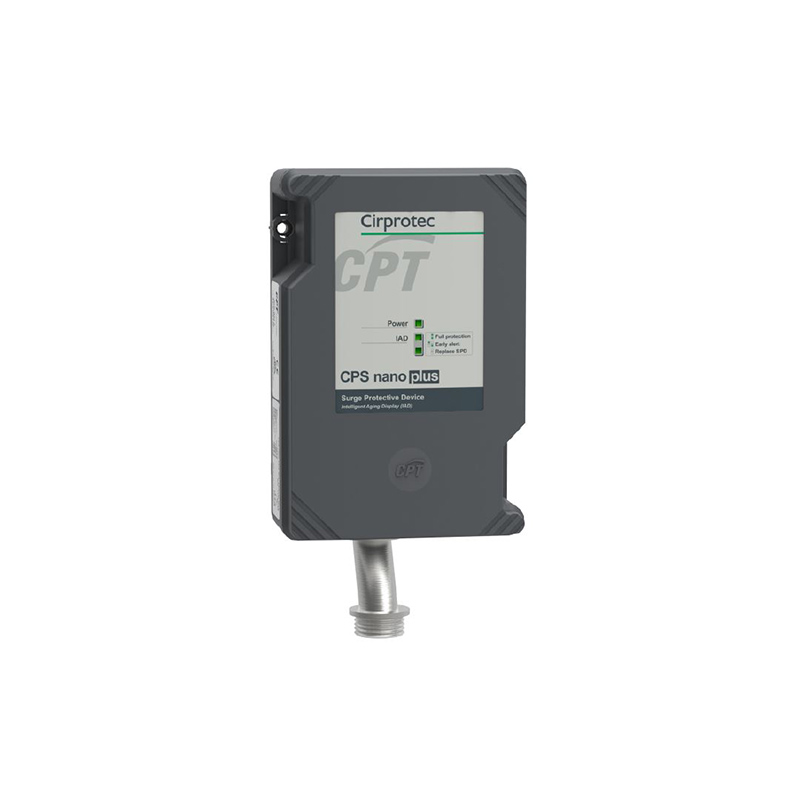

CPS Nano & Nano Plus
PRODUCT INFO
CPS nano is the range of non-modular surge protection devices (SPD - TVSS) in accordance with UL 1449 3rd edition. NEMA type enclosure, hardwired compact format.
Type 2, “Permanently connected” SPDs intended for installation on
the load side of the service equipment (main panel) overcurrent
device; including SPDs located at the branch panel.
Maximum 8/20 discharge capacity (Imax) from 40 to 160 kA per phase.
Nominal 8/20 discharge current rating (In) from 10 to 20 kA per phase.
