CircontrolEV Charging

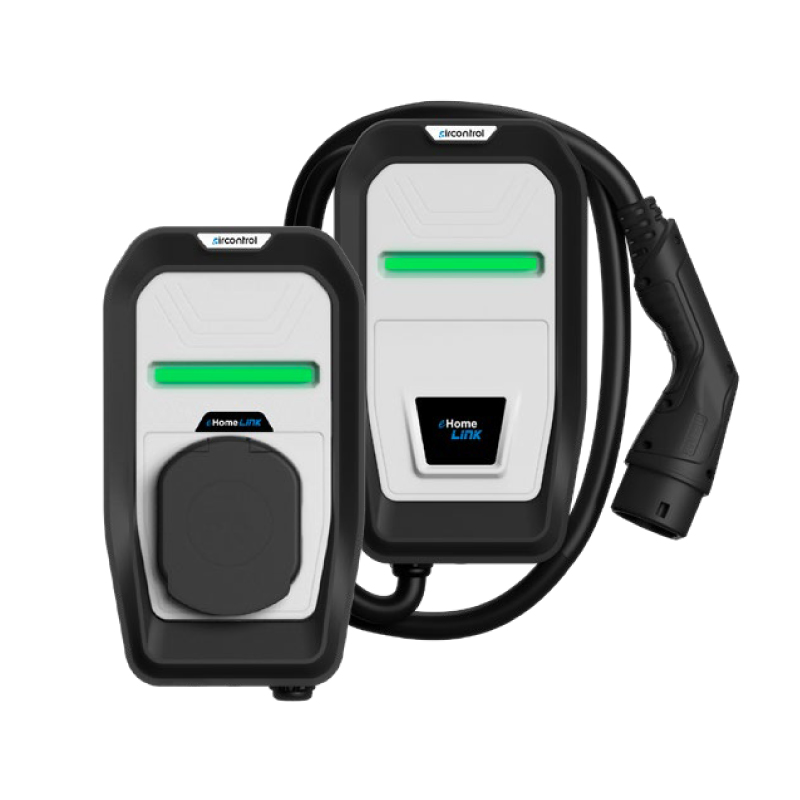

Wallbox eHome

  • PRODUCT INFO
  • VIDEO CLIP
  • Designed to be installed (both indoors and outdoors) at private homes, communal blocks, companies and other places where user authentication is not a requirement.

Description
  • Its well-designed shape allows the cable to be rolled up, keeping it tidy and protecting it from breaking while the charger is not in use.
  • Simple user operation thanks to its Plug ‘n’ Charge mode that avoids user authentication by means of an RFID card, phone of equivalent method.
  • This series also includes a selector switch that facilitates the setup of the charger’s maximum output current (reducing installation time and cost).
  • Remote charging activation is also offered by means of an ON/OFF external input signal (e.g. timer).
  • The Wallbox eHome series features a reserved space in case you want to include your own branding on it.
  • Several security protections are available as optional, including 6mA DC leakage detector.
  • Communication RS485 Modbus in order to integrate with external HEMS (Home Energy Management Systems) for smart management and monitoring purpose.
  • Compatible with the Home BeON sensor (accessory), it is able to dynamically adjust the electric vehicle’s consumption according to the available power of the installation.
  • The LED bar at the front not only informs the user about the charger’s status (e.g. operative, faulty...), but also the EV charging status
  • The door at the front with key access and electrical protections (optional) not only provides easy access in the event of a power cut, but also protects the user from electric shocks.
  • The charger’s housing is made of ABS plastic, which is both robust and UV resistant, providing protection against mechanical stress and severe environmental conditions.
Technical specifications & models
