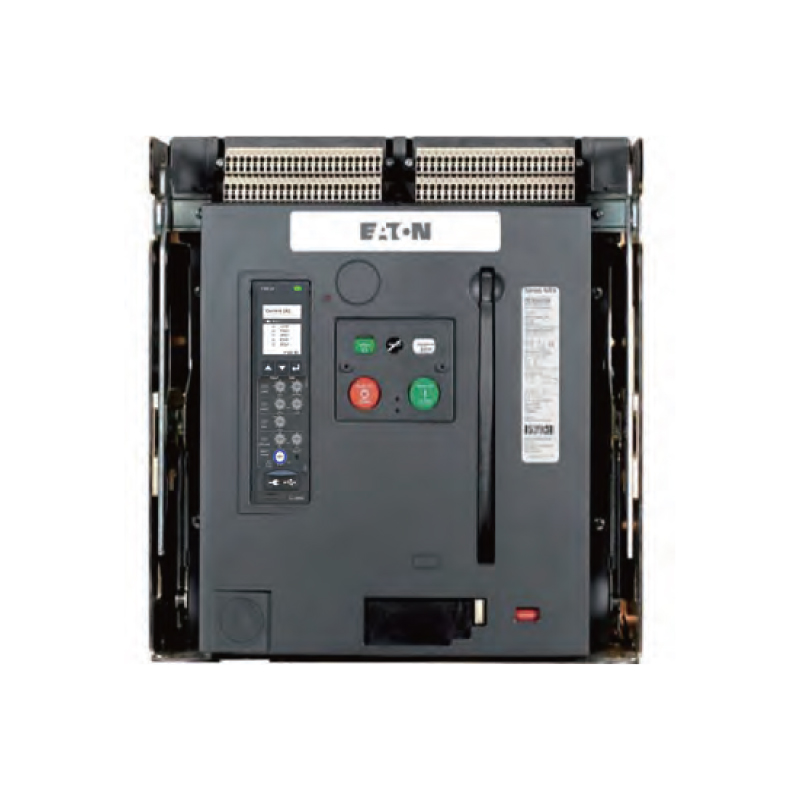

EatonAir Circuit Breaker

IZMX

  • PRODUCT INFO

  • Eaton‘s series IZMX is an innovative line of circuit-breakers up to 4000 A. Engineering and mounting requirements are reduced thanks to only two compact sizes, the modular design and standard accessories. The highlight of the series IZMX: The trip unit family PXR trip electronics. It covers a huge amount of applications. And in conjunction with an optional communication on board ensures that operation can be monitored from all round the globe. The innovative IZMX16 enables two circuit-breakers with a width of only 600 mm to be mounted in a switch cabinet.

DOWNLOAD CATALOG
Description
  • Modern circuit-breaker technology reduces system costs
  • The high-end multi-functional control units
  • PXR can be driven with software PXPM that enables enhanced functionality as unmatched control, professional testing and troubleshooting
  • Profibus, Ethernet and Modbus TCP/IP compatible
  • Engineering design simplified by reduction to just 2 sizes
  • Flexible and easy connection using the rotating connection adapter and associated connection options
  • Eaton’s software helps simplify testing, serviceability and customization – significant time and labor savings
  • An enhanced user interface enables engineers to remotely view and adjust the trip unit settings
  • The compact size of frames helps reduce non-revenue generating floor space
  • Modular design and common accessories allow for easy panel and switchboard integration

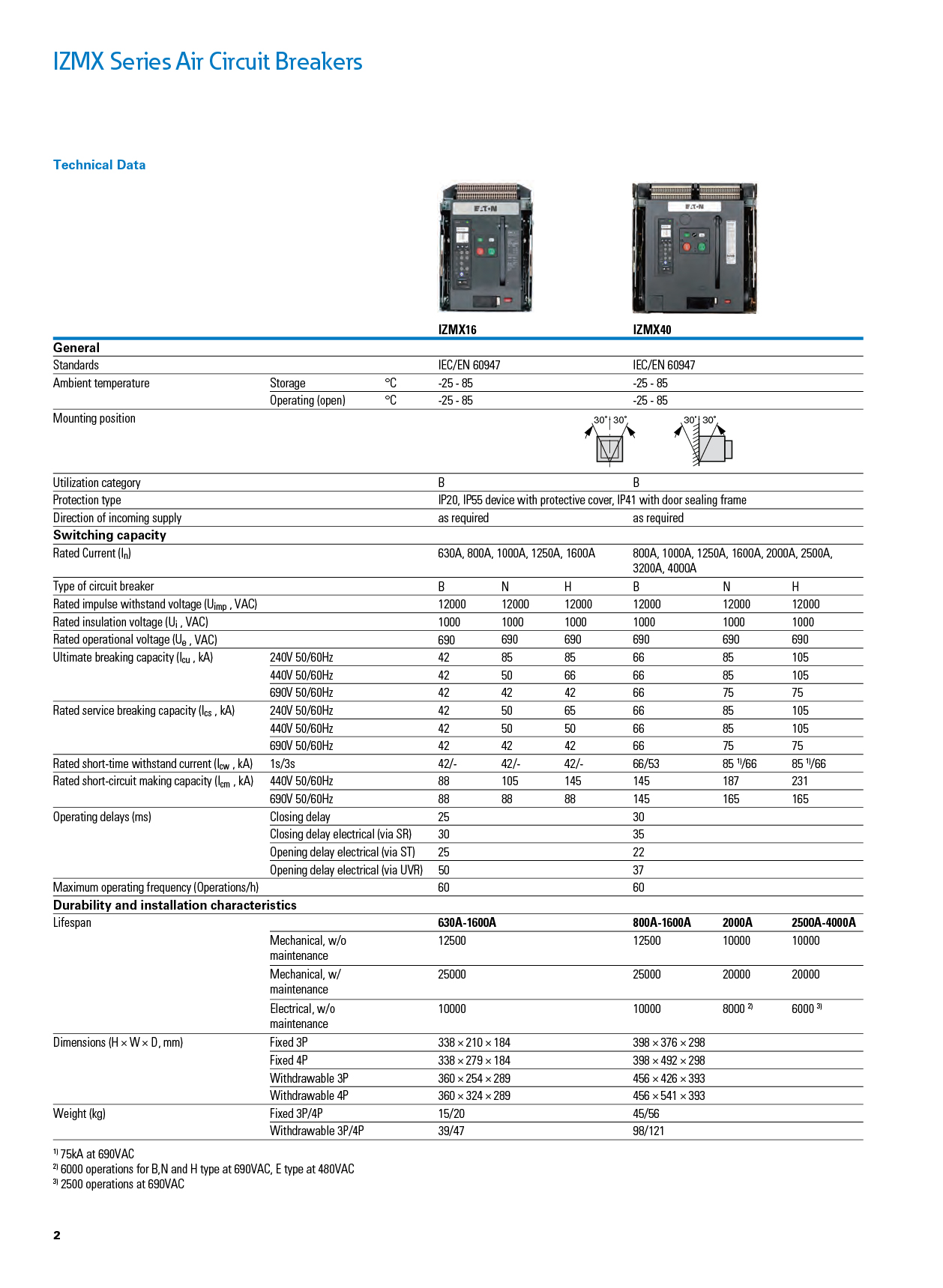

Technical specifications & models
