EatonEV Charger

Turbo DC60

  • PRODUCT INFO

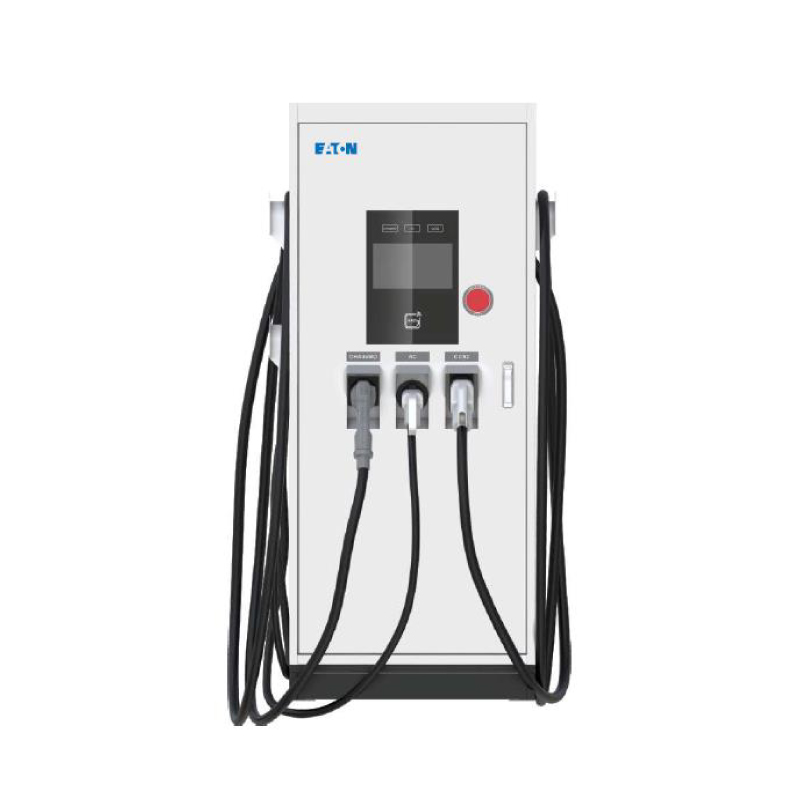

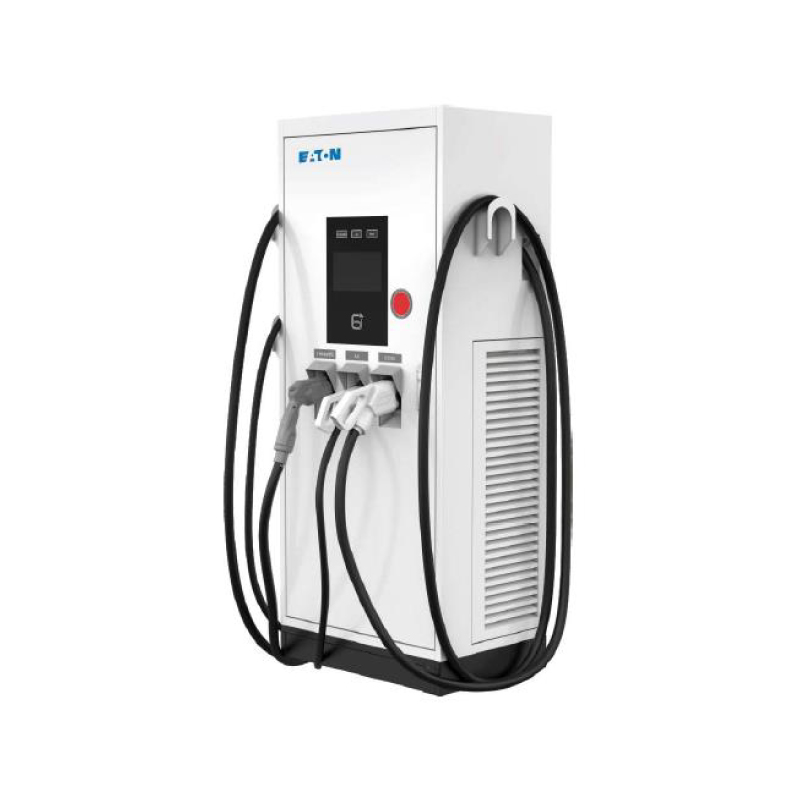

  • The Eaton Power Xpert EVX DC60 is a second-generation DC electric vehicle charger designed specifically for fast outdoor DC charging. This is a reliable outdoor fast DC charging option among other chargers. Because it has strong features such as multi-function (power conversion, charging control Human machine interaction control, communication, billing and meter measurement), IP54 waterproof and dustproof, and ensures safe charging both indoors and outdoors. Multiple outputs (Two or three charging heads) that support simultaneous charging mode And the modular design of the power conversion unit supports flexible output power configurations to meet a variety of charging needs.

DOWNLOAD CATALOG
Description
  • Integration of AC and DC power
  • One charger with multiple outputs Can be charged simultaneously
  • One AC charger: Type 2, with a maximum output of 22kW.
  • Two DC chargers: 2CCS2/CCS2 and CHAdeMO, with a maximum output of 60kW.
  • All Ethernet/4G/WiFi communications are supported.
  • All Ethernet/4G/WiFi communications are supported.
  • OCPP communication protocol with CMS
  • Smart working through apps and cashless payments
  • Working through the app/authentication too RFID/plug in power and ready to use
  • High protection grade IP54 with IP65 option.
  • Type A RCD for residual current protection.
  • MID certified AC meter
  • Supports ISO15118 for advanced plug-in & charging features.

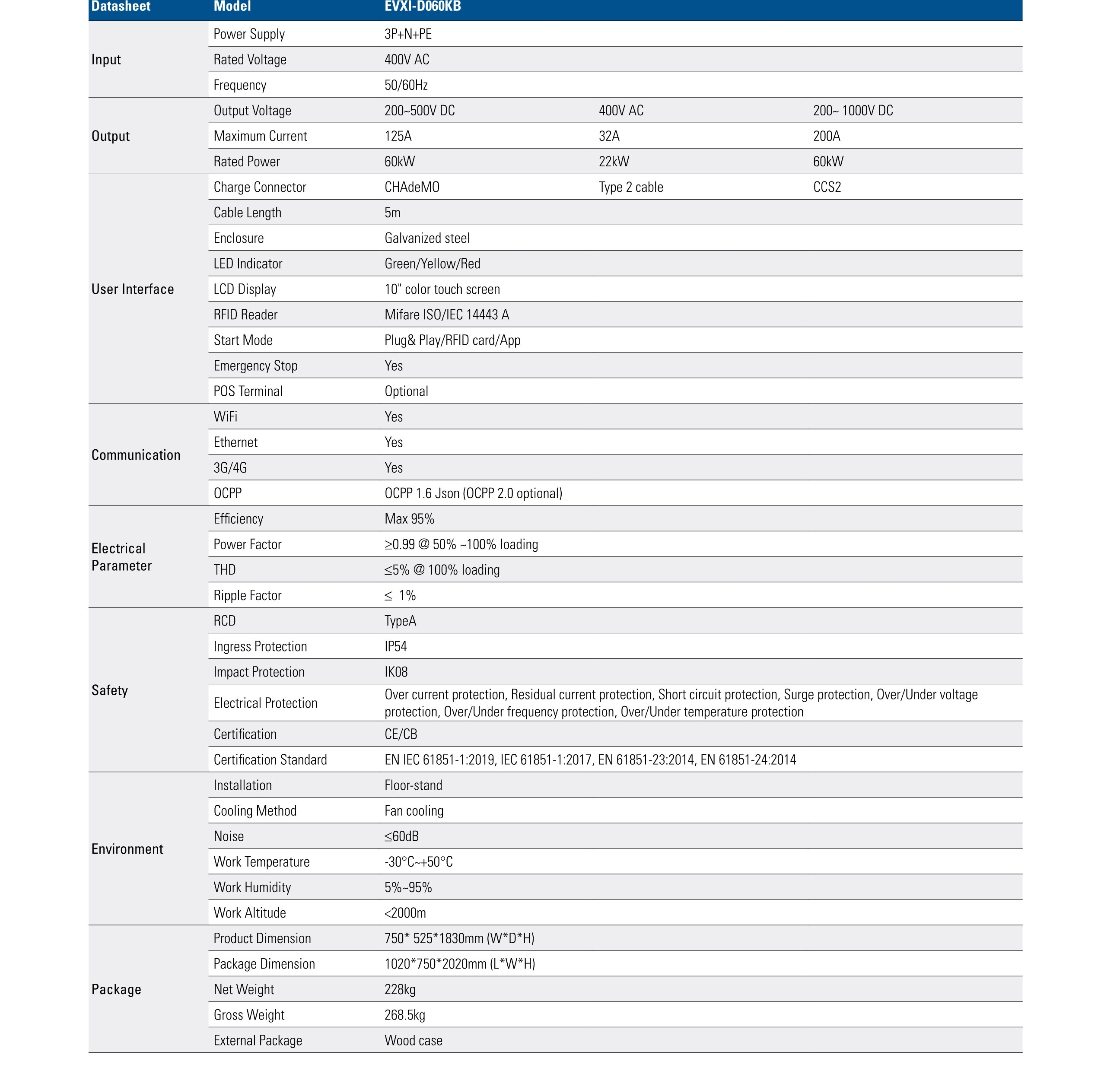

Technical specifications & models
