EatonEV Charger

Turbo DC120

  • PRODUCT INFO

  • The Eaton Power Xpert EVX DC120 is a second generation DC electric vehicle charger designed specifically for fast DC charging outdoors. It is a reliable outdoor DC charging option among a wide range of chargers. Due to its strong features such as multi-function (power conversion, charge control human-machine interaction control, communication, billing and metering), IP54 waterproof and dustproof, and ensures safe charging both indoors and outdoors. Multiple outputs (Two or three charging heads) that support simultaneous charging mode And the modular design of the power conversion unit supports flexible output power configurations to meet a variety of charging needs.

DOWNLOAD CATALOG
Description
  • One charger with multiple outputs Can be charged simultaneously
  • Two DC CCS2 chargers, maximum output 120kW
  • Constant power from voltage 300~1000V, less heat with less current.
  • All Ethernet/4G/WiFi communications are supported.
  • OCPP communication protocol with CMS
  • Smart working through apps and cashless payments
  • Working through the app/authentication too RFID/plug in power and ready to use
  • High protection grade IP54 with IP65 option.
  • Optional POS terminal for contactless credit card payments
  • Type A RCD for residual current protection.
  • MID certified AC meter
  • Supports ISO15118 for advanced plug-in & charging features.

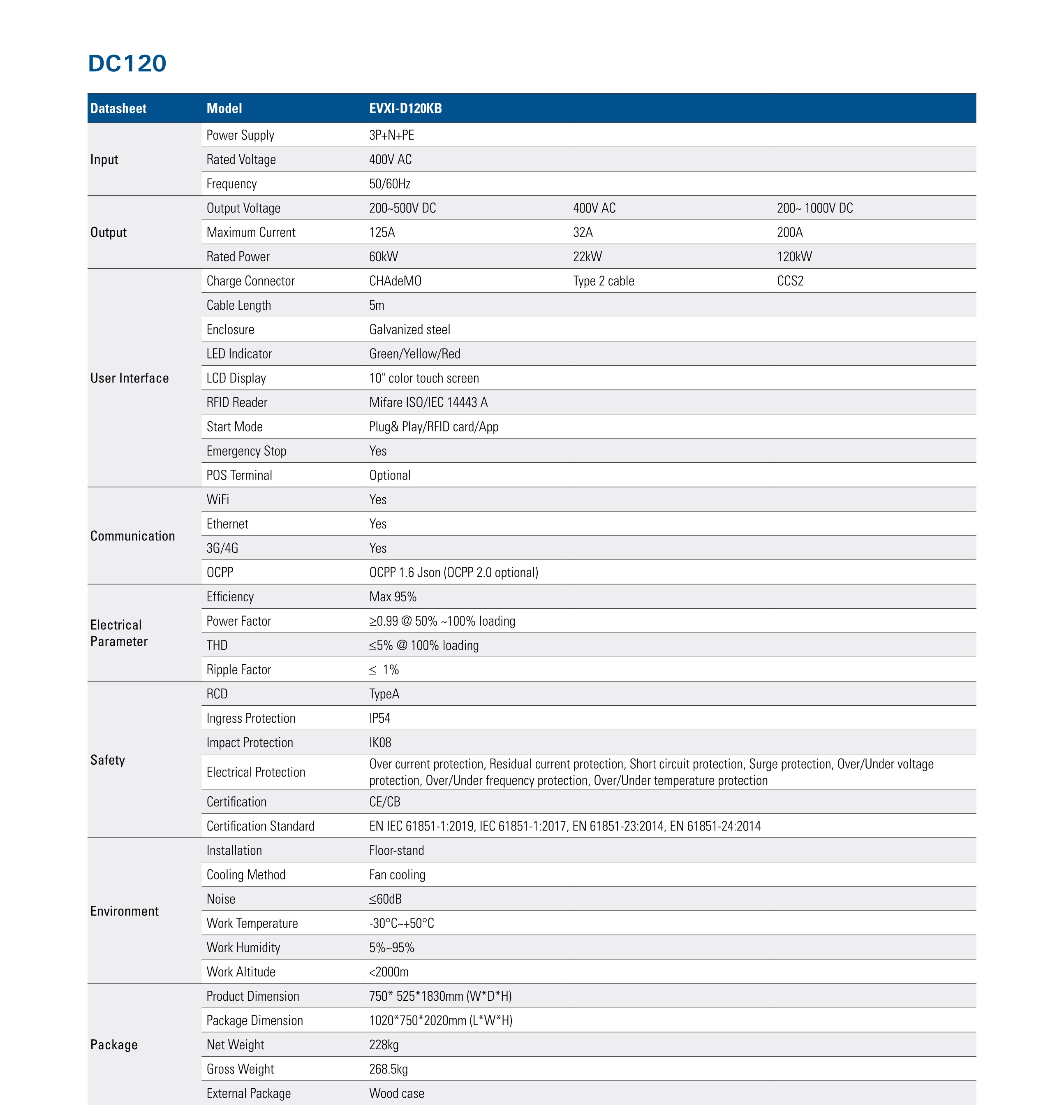

Technical specifications & models
