CIRPROTECESE Lightning Rod

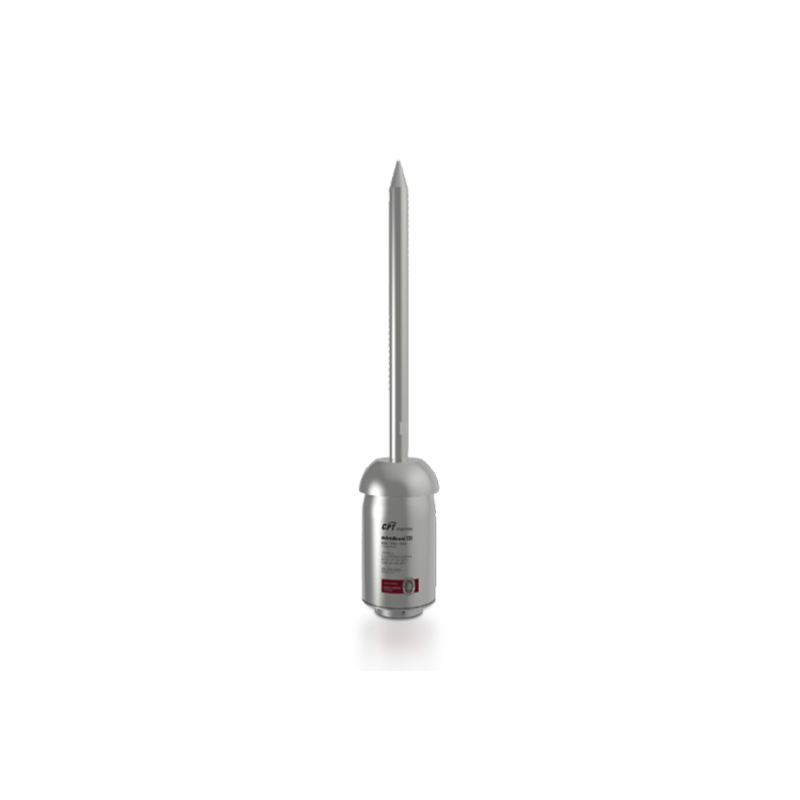

Nimbus 45

  • PRODUCT INFO
  • nimbus® is the series of lightning rods with electronic early streaming emission (ESE). Radius of protection up to 120 m (based on emission times). Complies with standards NF C 17 102:2011, UNE 21186:2011, CTE SU 8.

Description
  • Electronic ESE (Early Streamer Emission) lightning air terminal
  • Tested and certified to NF C 17-102:2011 by accredited independent laboratory
  • Early streamer emission time: 45 μs
  • Radius of protection (h=5 m, Level IV of protection): 89 m
  • Maximum withstand lightning discharge current, Iimp (10/350 μs): 200 kA
  • Material: stainless steel grade 316
  • Enclosure rate: IP 67
  • Weight: 3.115 g, Height: 478,5 mm
  • Bureau Veritas product certificate
  • On-site testable E.S.E. electronic circuit

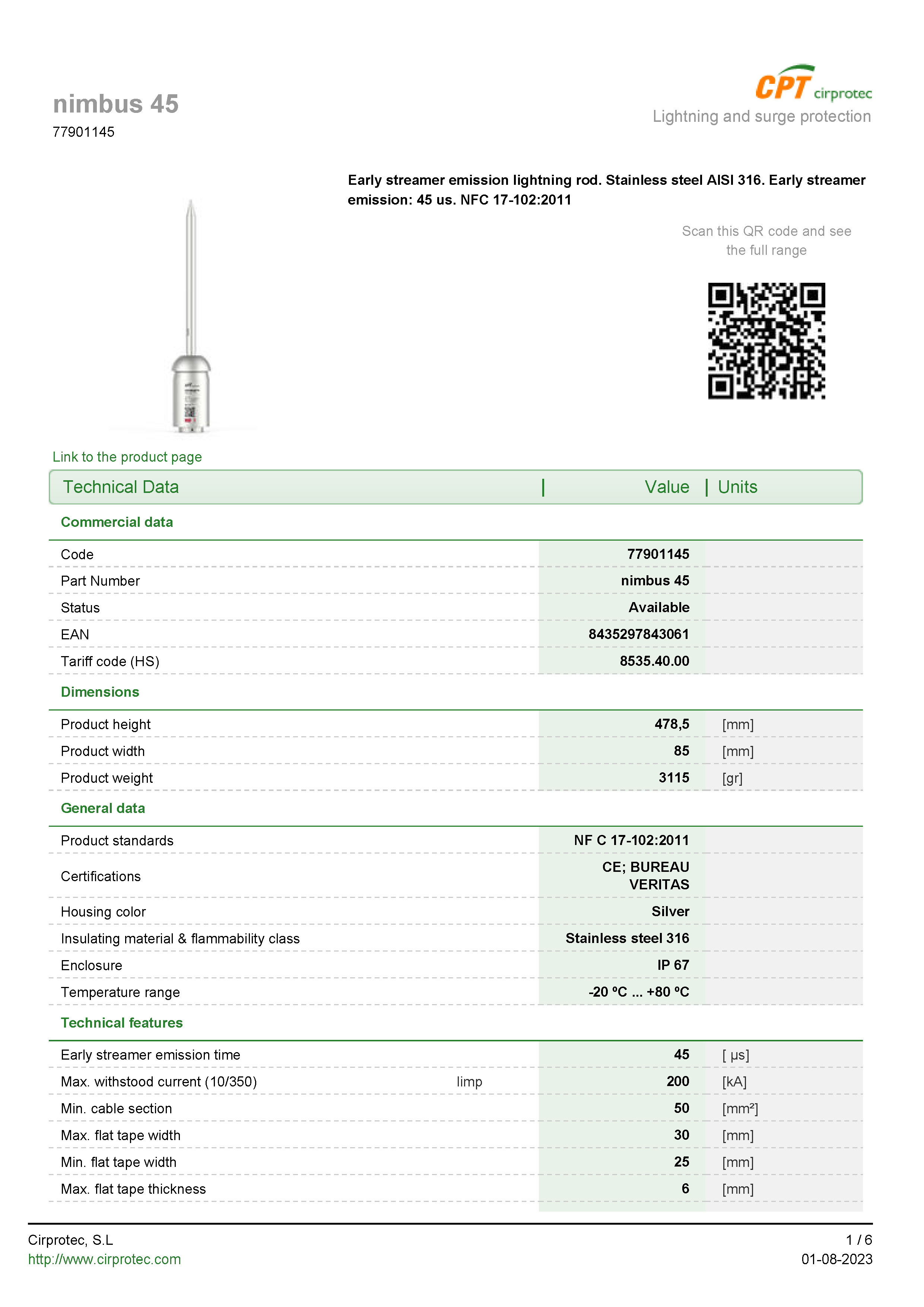

Technical specifications & models
