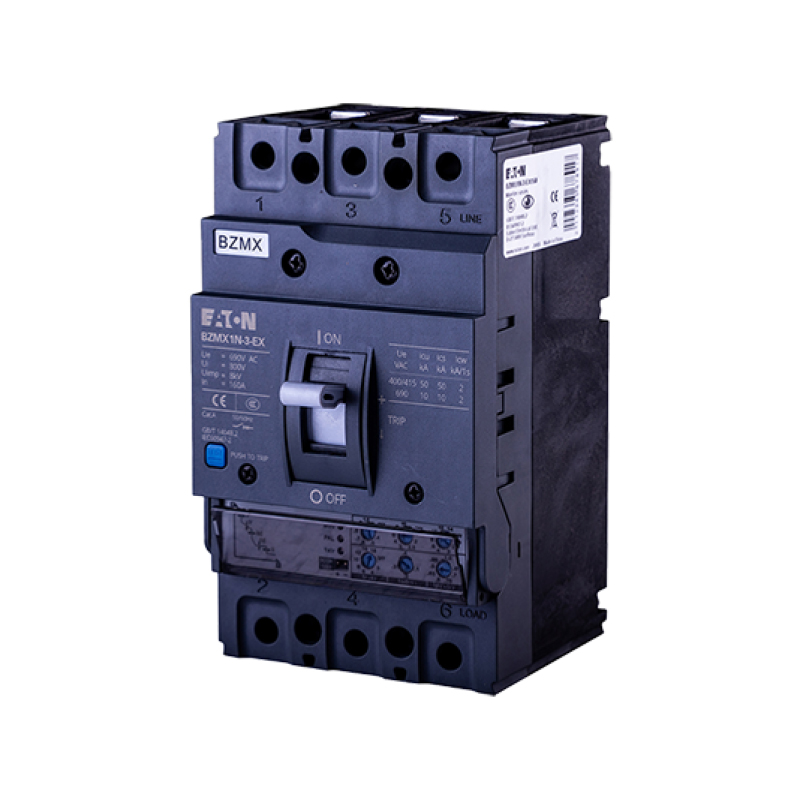

EatonMolded Case Circuit Breaker

BZMX

  • PRODUCT INFO

  • The BZMX series Molded Case Circuit Breaker offers high performance, ease of use, and multiple protection functions for power distribution and motor protection. It features a breaking capacity of 25kA to 50kA and a rated current range of 10A to 630A. Available trip units include electronic and thermal-magnetic types, with various accessories to meet different application needs. The operating short-circuit breaking current (Ics) equals the ultimate short-circuit breaking current (Icu).

DOWNLOAD CATALOG
Description
  • Multiple protection functions: Power distribution protection and motor protection
  • Breaking capacity from 25kA to 50kA, and rated current range from 10A to 630A, meeting most application requirements

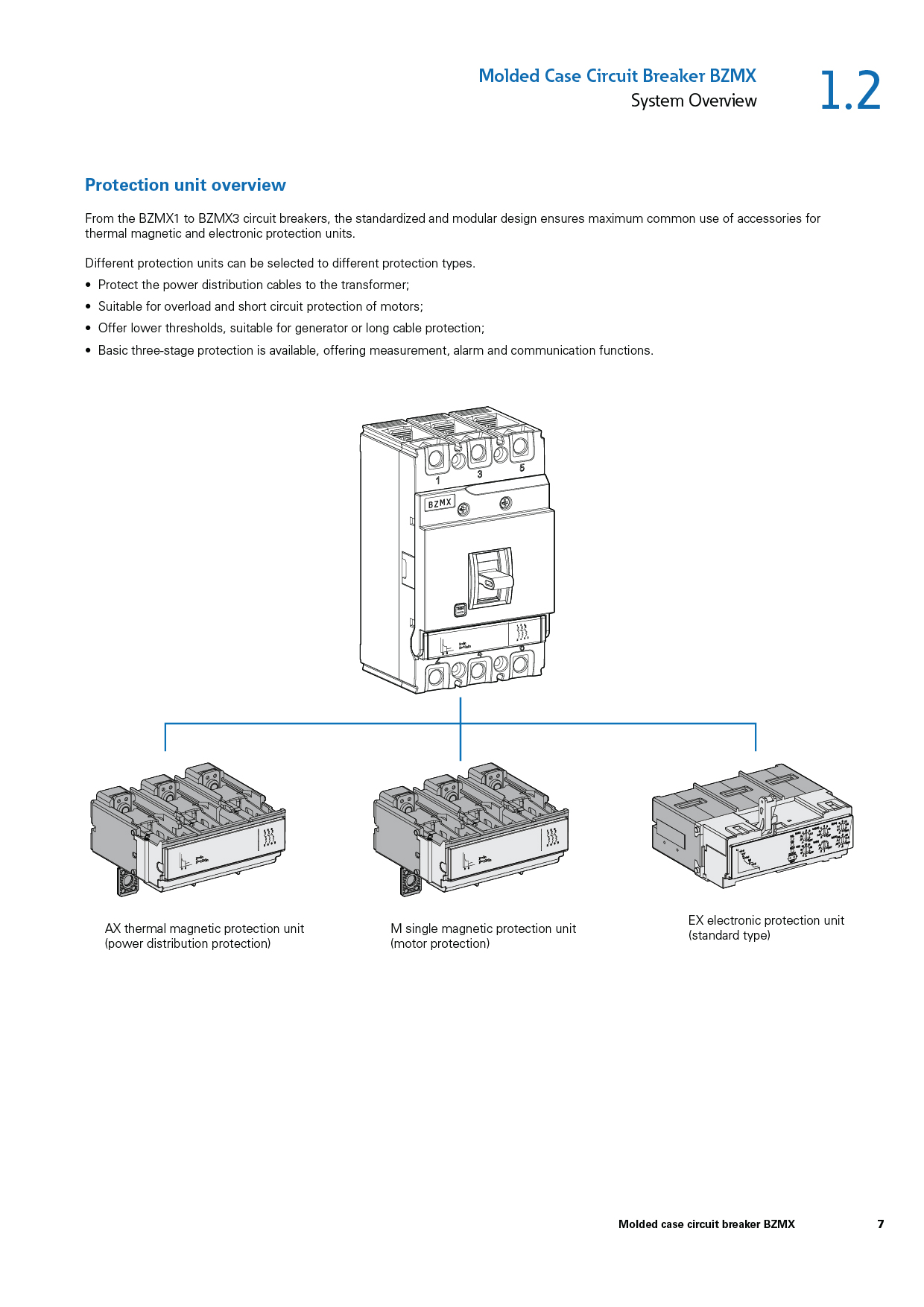

  • The trip units offer electronic type with complex functions, and conventional thermal-mag netic type, to meet different needs.
  • A variety of accessories are available, to satisfy different application needs by customers.
  • Operating short-circuit breaking current Ics = ultimate shortcircuit breaking current Icu.
Technical specifications & models
