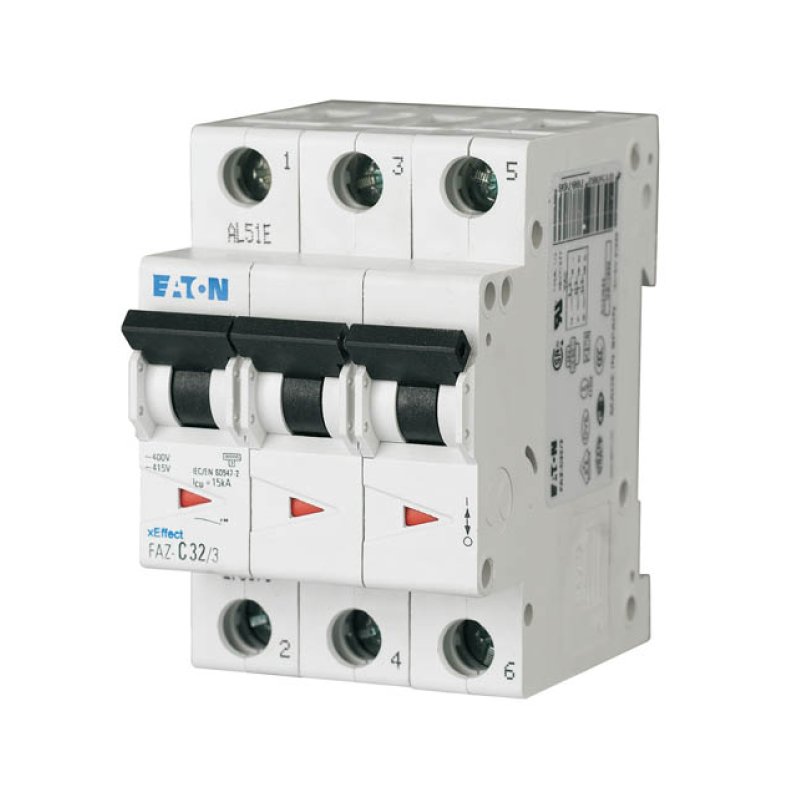

EatonMiniature Circuit Breaker

FAZ

  • PRODUCT INFO

  • The FAZ miniature circuit breaker is a protective device equipped with both a thermal and an electromagnetic release that is available in 1-, 2-, 3-, 4-, 1+N and 3+N pole versions. The FAZ is available with rated currents of 0.16 A to 63 A. Depending on the device type, the switching capacity is 15 kA or 10 kA according to IEC/EN 60947-2, 10 kA according to IEC 60898-1, and 10 kA or 5 kA according to UL 1077.

DOWNLOAD CATALOG
Description
  • Premium miniature circuit breaker for industrial applications and high-end building installations
  • Current limiting class 3
  • Back-up fuse with high selectivity, thanks to low let-through energy
  • Contact position indicator red – green
  • Rated currents up to 63 A
  • Rated currents up to 63 A Tripping characteristics B, C, D, K, S and Z (1- and 2-pole versions: B, C, D, K, S, Z / 1+N and 3-N pole versions: B, C, D, K / 3- and 4-pole versions: B, C, D, K, Z)
  • Rated switching capacity 15 kA (10 kA) according to IEC/EN 60947-2 and 10 kA according to IEC/EN 60898-1
  • Compatible with standard busbars
  • Guide for secure terminal connection
  • 3-position DIN-rail clip to simplify removal from the busbar system
  • Comprehensive range of accessories, which can also be retrofitted
