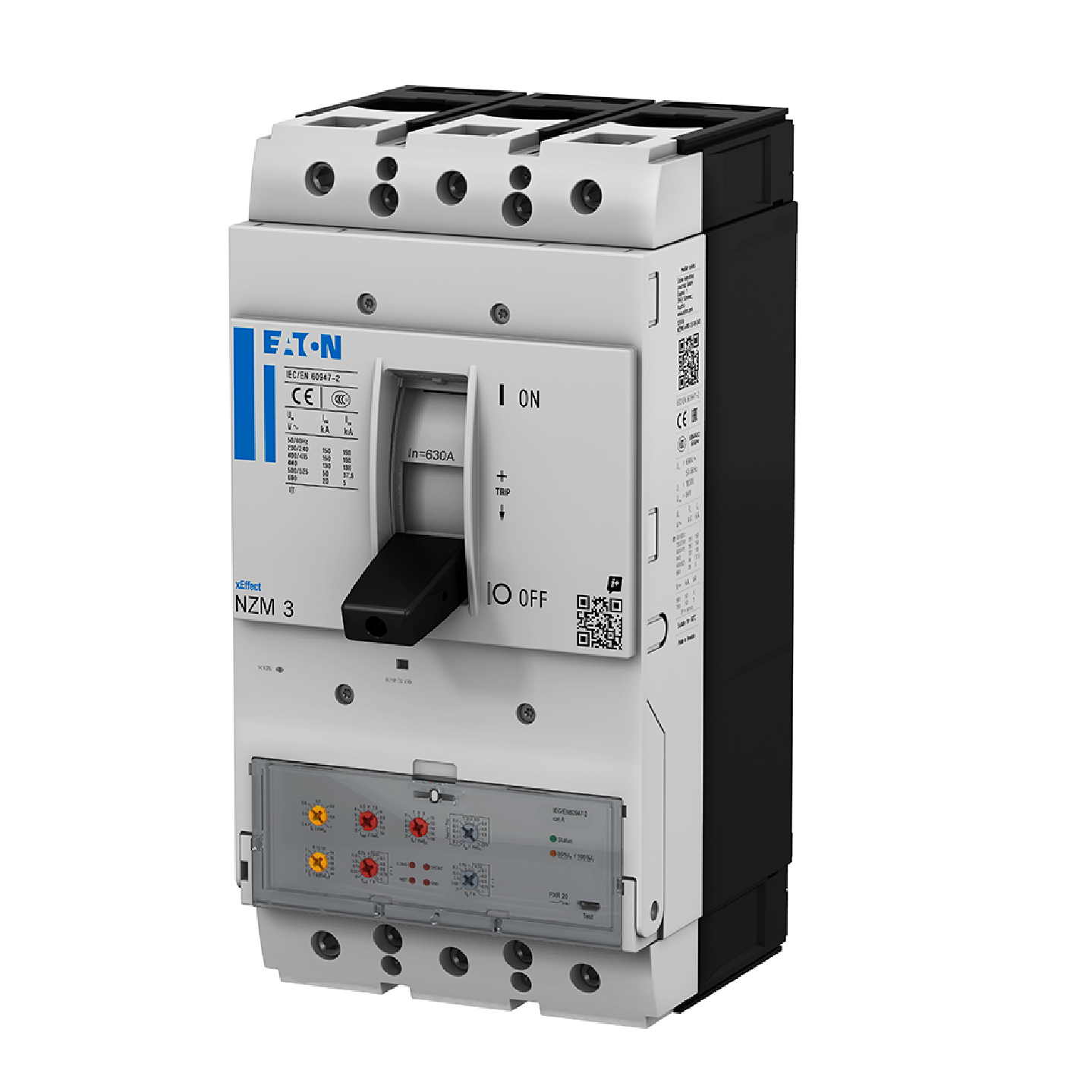

EatonMolded Case Circuit Breaker

NZM

  • PRODUCT INFO

  • Eaton‘s NZM series circuit breakers cover rated currents of 20 to 1600 A – with only four frame sizes. And they are also optimally matched to each other. The wide range of possible applications covers every need. Eaton took a close look at what customers really want and designed the product accordingly.

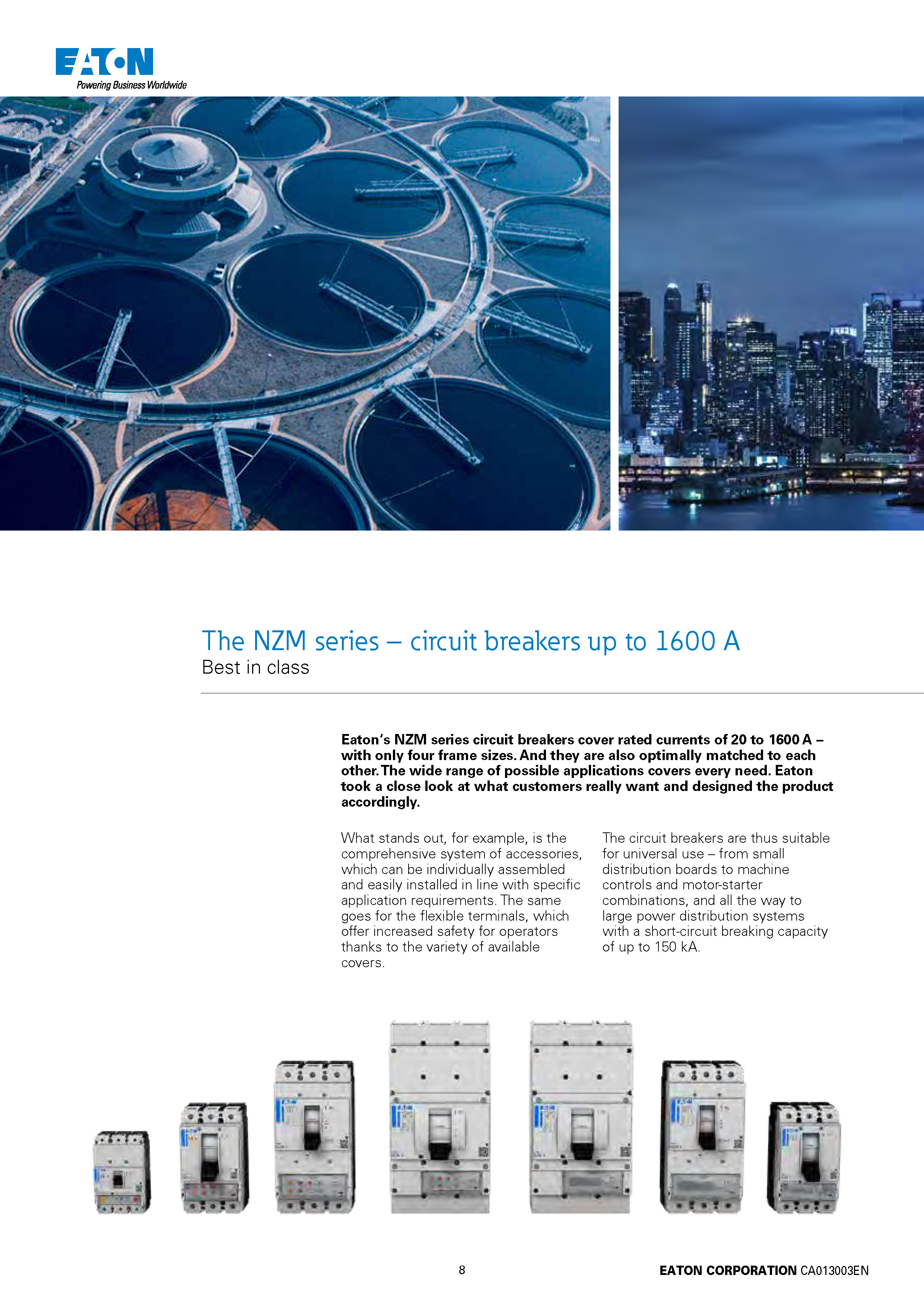

DOWNLOAD CATALOG
Description
  • Compact circuit breaker with four frame sizes with ratings from 20A up to 1600A.
  • Maximum switching capacity up to 150 kA and operating voltage up to 690V.
  • A long list of accessories and a wide range of installation and connection options.
  • Approvals received worldwide including IEC, UL, CSA and CCC.
  • Separate relay outputs for high load alarms at 70%, 100% and 120%.
Technical specifications & models
