CEM-C31

  • PRODUCT INFO

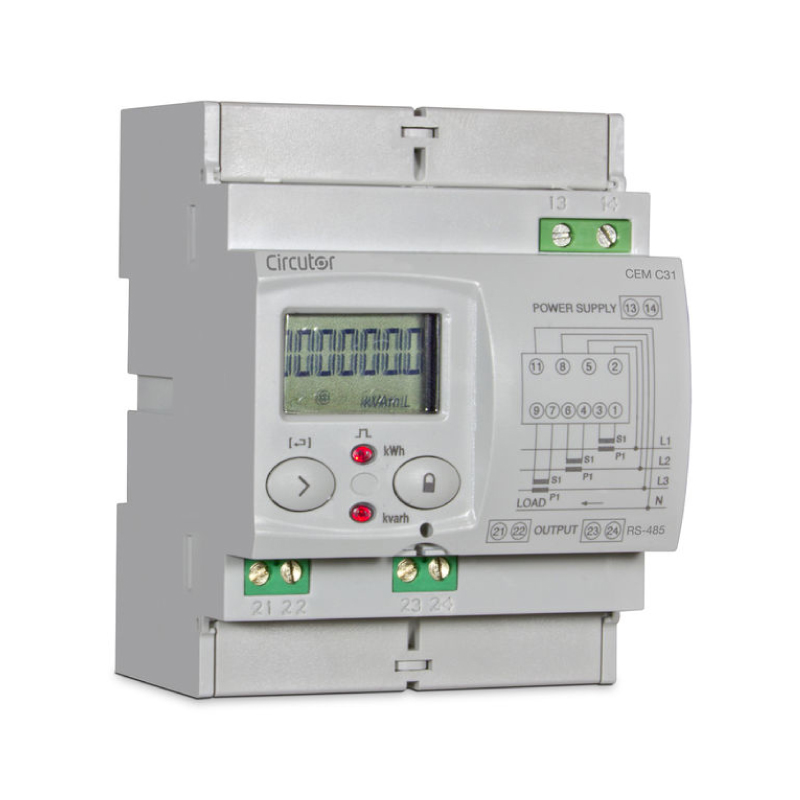

  • Three-phase electrical energy meter with indirect measurement, 5(10)A (, CEM-C31), direct measurement 65 A (CEM-C21) or single-phase energy meter (CEM-C10). Built-in LCD display (7 digits) with rotating screen system. Features built-in RS-485 communications. Also features 2 buttons (1 sealable button) for viewing all the measured information.

DOWNLOAD CATALOG
Description
  • MID certification, module B+D (depending on the type)
  • Class 1 active energy (Class B, in accordance with MID), Class 2 reactive energy
  • Complies with the EN 50470 (MID European standards) or IEC 62052-11 standards (international standards), depending on the type.
  • Compact size (CEM-C10: 2 modules, 36 mm, CEM-C21 y CEM-C31: 4 modules, 72 mm)
  • Resettable partial meter
  • 1 programmable impulse output, in accordance with DIN 43864 (CEM-C10, CEM-C31-T1, CEM-C21-T1 models)
  • 1 Digital input for Tariff selection and impulse count (CEM-C31-D, CEM-C21-DS)
  • Indicates bad connections on the screen
  • Energy storage, even in the case of bad connections

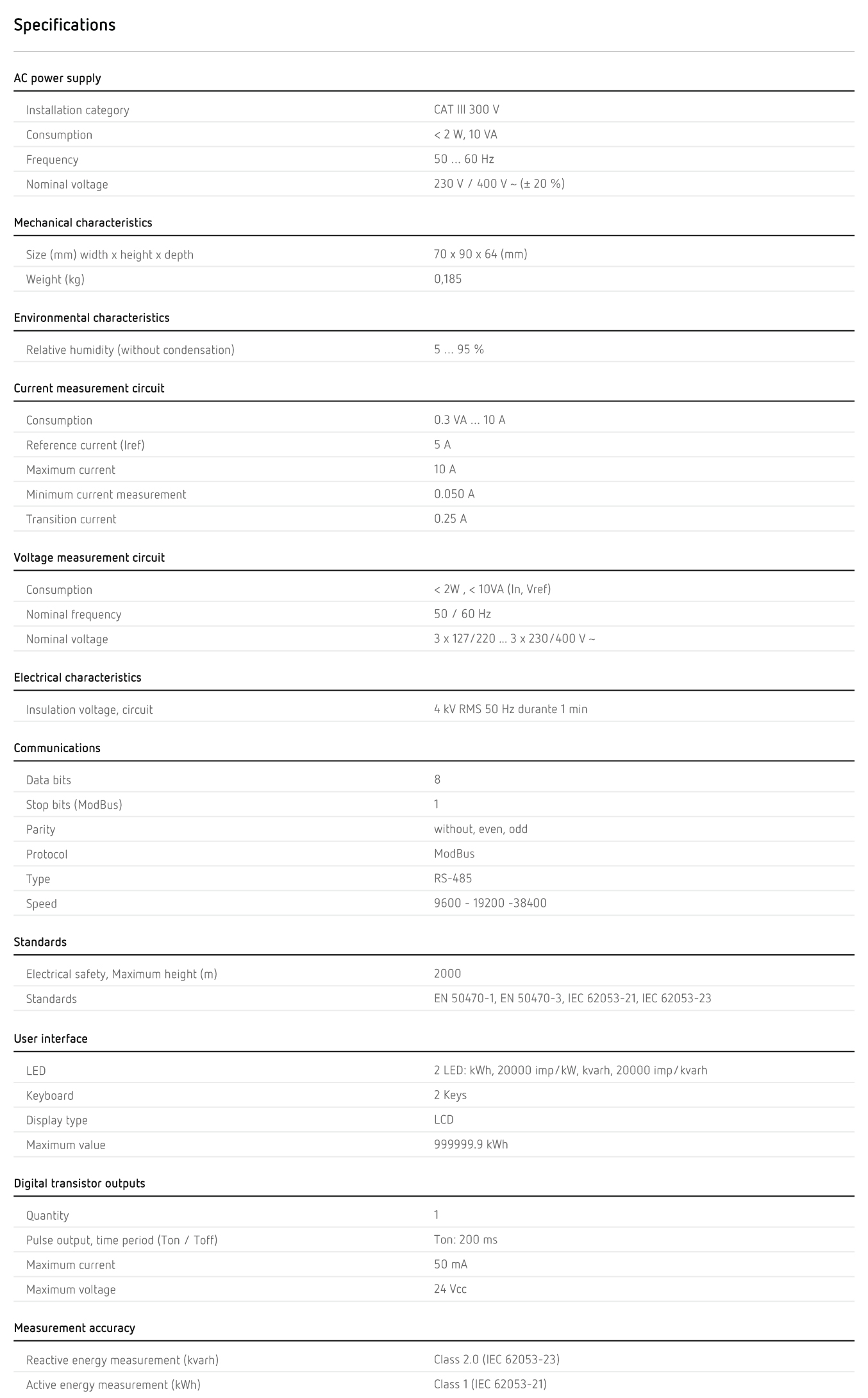

Technical specifications & models
