EatonMiniature Circuit Breaker

PLS

  • PRODUCT INFO

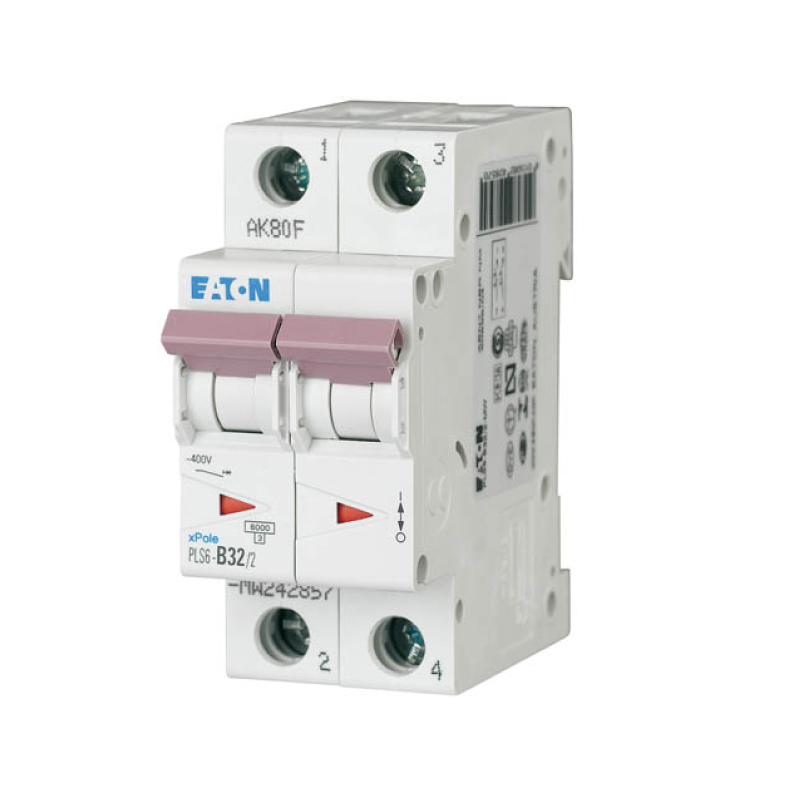

  • The PLS and PLSM miniature circuit breakers are protective devices equipped with both a thermal and an electromagnetic release that are available in 1-, 2-, 3-, 4-, 1+N and 3+N pole versions. These Eaton miniature circuit breakers are compatible with AC and DC applications up to 48 V with rated currents from 0.16 A to 63 A, and they are available with tripping characteristics B, C and D. The switching capacity of the PLS6 is 6 kA and that of the PLSM is 10 kA.

DOWNLOAD CATALOG
Description
  • Premium miniature circuit breaker for residential and non-residential applications
  • Current limiting class 3
  • Back-up fuse with high selectivity, thanks to low let-through energy
  • Contact position indicator red – green
  • Rated currents up to 63 A
  • Tripping characteristics B, C, D
  • Rated switching capacity according to IEC/EN 60898-1
  • Suitable for DC applications up to 48 V
  • Complies with the insulation coordination requirements (= distance between the contacts ≥ 4 mm)
  • Busbar compatible
  • Lift/claw double terminals at top and bottom
  • For mounting on busbar at top or bottom, as required
  • Guide for secure terminal connection
  • 3-position DIN-rail clip to simplify removal from the busbar system
  • Comprehensive range of accessories, which can also be retrofitted
  • Switch-grip in rated current color
