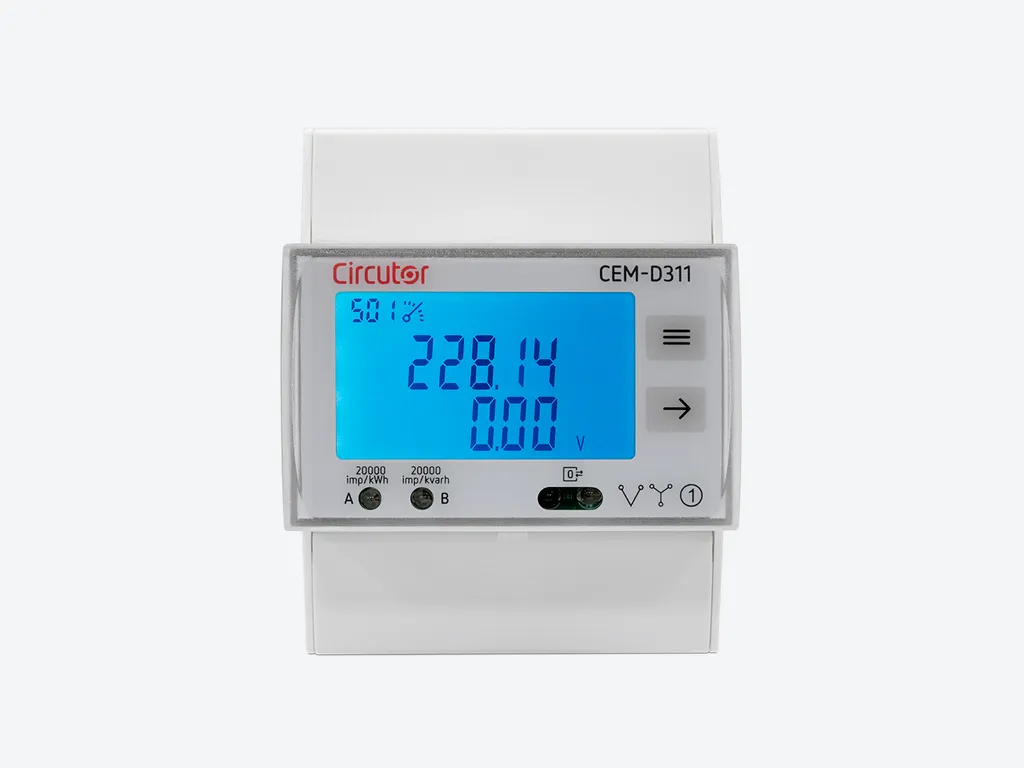

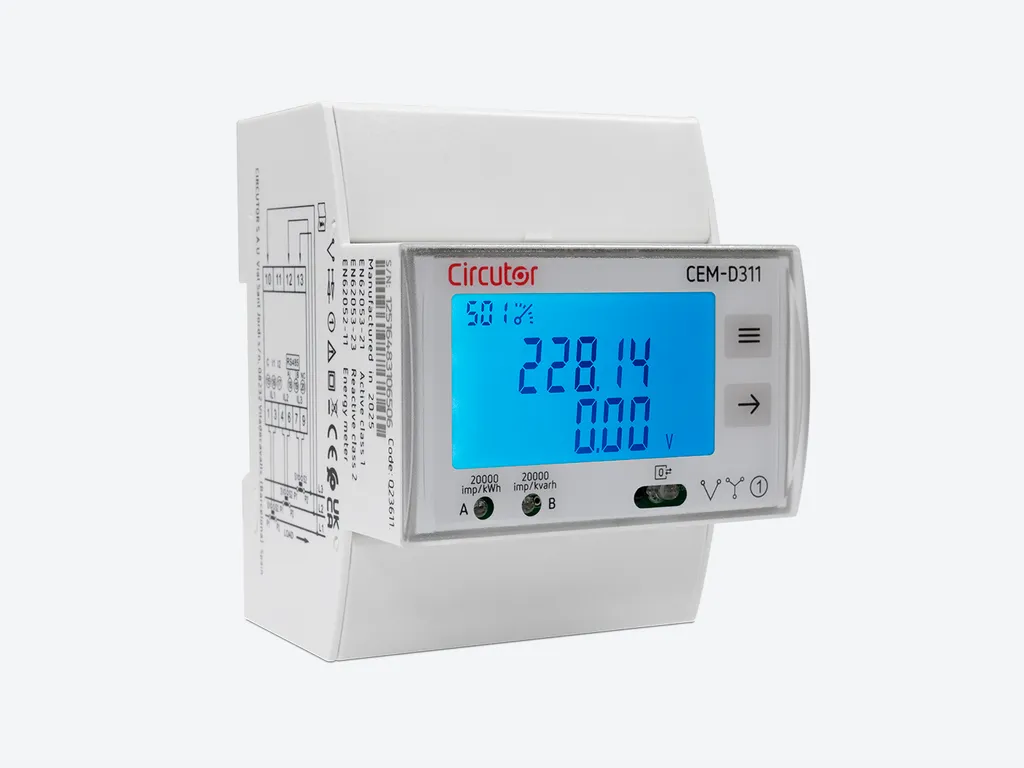

CEM-D311

  • PRODUCT INFO

  • Three-phase electrical energy meter with indirect measurement via CT secondary current of 1 A or 5 A. Measurement range 3x127(230)…3x230(400) V, RS-485 communications with Modbus/RTU protocol, 2 digital inputs, LCD display and compact 4-module DIN-rail mounting. Active energy accuracy Class 1 according to IEC 62053-21. Suitable for energy sub-metering, consumption monitoring and SCADA connectivity.

DOWNLOAD CATALOG
Description
  • Three-phase electrical energy meter with indirect measurement via CT secondary current of 1 A or 5 A
  • Measurement range: 3x127(230)…3x230(400) V
  • RS-485 communications with Modbus/RTU protocol and 2 digital inputs
  • Class 1 active energy accuracy and Class 2 reactive energy accuracy
  • Compact 4-module design for DIN-rail mounting
  • Resettable partial energy counter
  • LCD display for basic electrical parameters including V, A, kW, kWh and PF

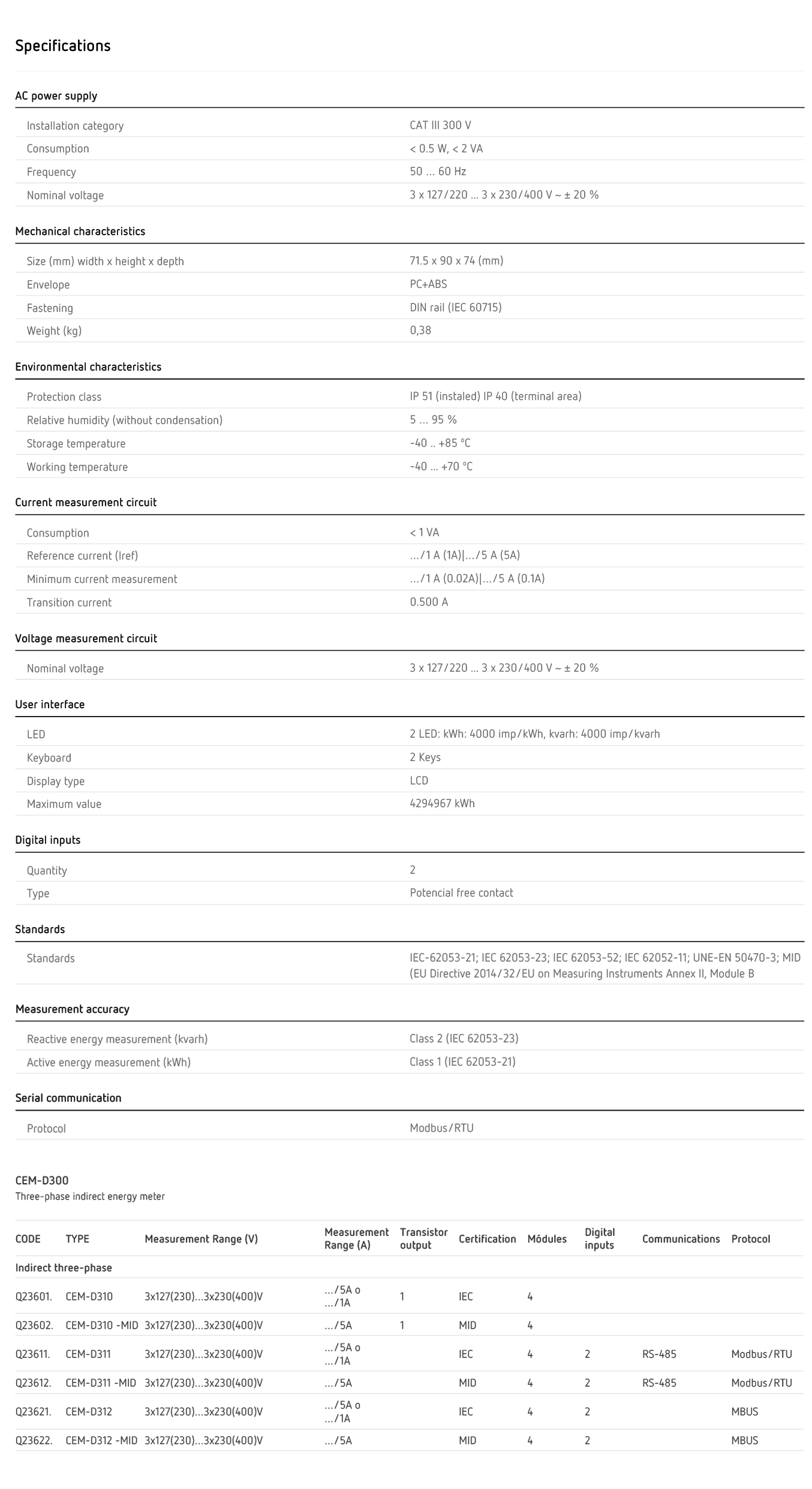

Technical specifications & models
